부탁드립니다.
2018-06-20 06:33:13
201
글번호 119877
첨부 이미지

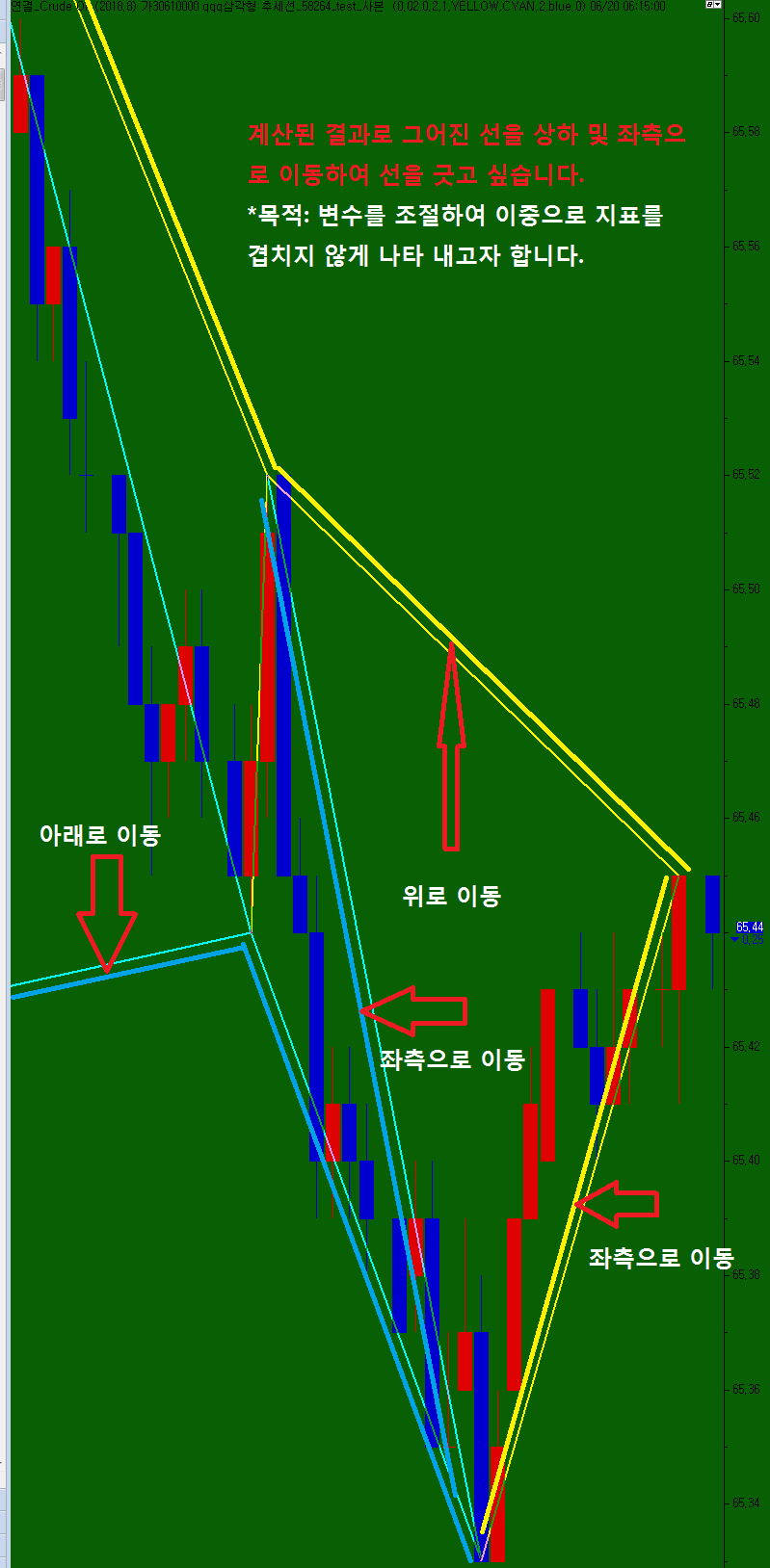

그림1
그림2
도움 주심에 감사 드립니다.
그림1과 같이 나타내고자
//52행 아래의 식을
TL11 = TL_New(HD1,HT1,HH1,HD,HT,HH);에서
TL11 = TL_New(HD1,HT1,HH1+PriceScale,HD,HT,HH+PriceScale);로 고치고
//98행 의 아래의 식을
TL22 = TL_New(LD1,LT1,LL1,LD,LT,LL);를 고치니
TL22 = TL_New(LD1,LT1,LL1-PriceScale,LD,LT,LL-PriceScale);로 고치니

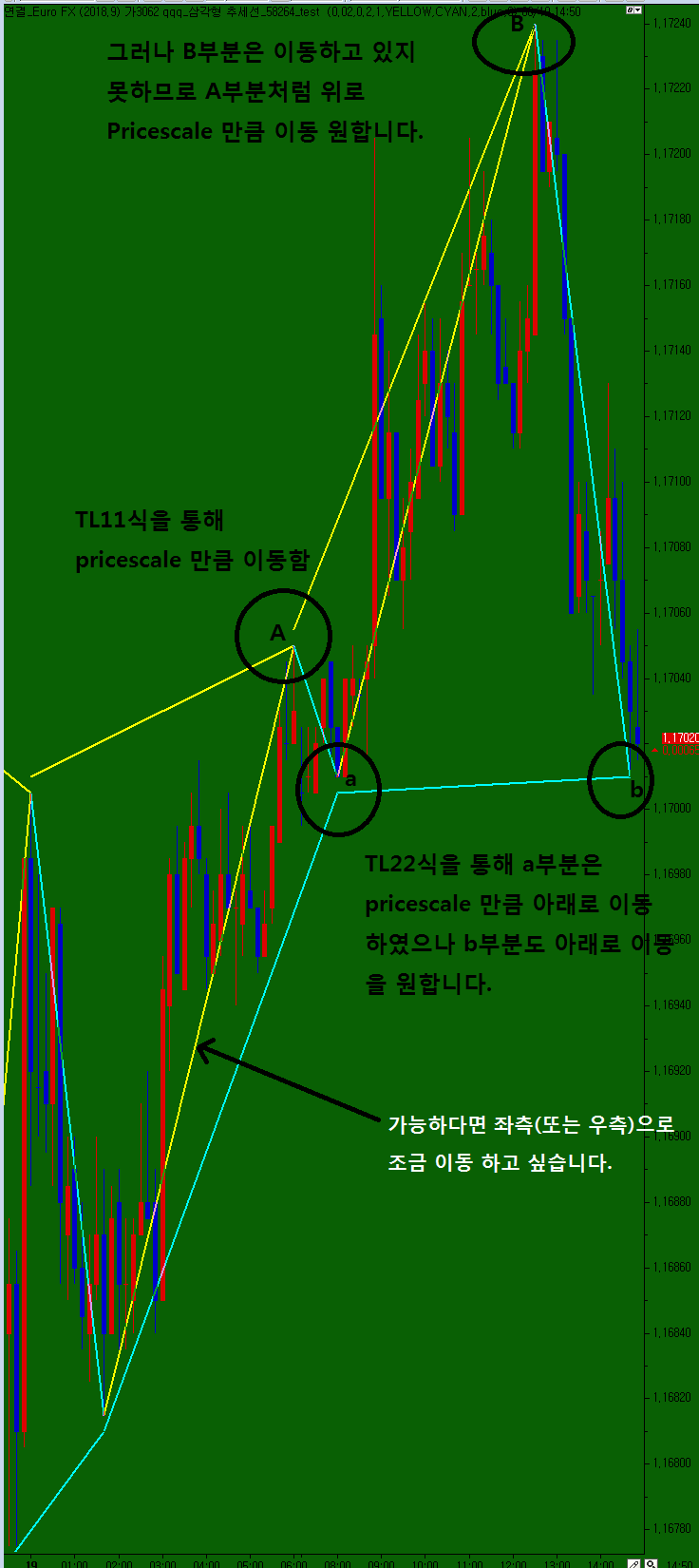

그림2와 같이 되었습니다.
일부 만족한지 못한 부분을 수정 부탁 드립니다.
수식)
input : af(0.02), maxAF(0.2),추세선두께(1),추세선색1(YELLOW),추세선색2(CYAN),연장선두께(2),연장선색(blue);
input : 텍스트출력(0);
var : T(0),HH(0),LL(0),HD(0),HT(0),LD(0),LT(0);
var : HH1(0),LL1(0),HD1(0),HT1(0),LD1(0),LT1(0);
var : TL1(0),TL2(0),cnt(0),count(0);
var : TL3(0),TL4(0),TL5(0),TL6(0),tx1(0),tx2(0),tx11(0),tx22(0);
Var : TL11(0),TL22(0);
var1 = CSar(af,maxAF);
if crossup(c,var1) Then
{
T = 1;
HH = H;
HD = sdate;
HT = stime;
HH1 = HH[1];
HD1 = HD[1];
HT1 = HT[1];
if LL > 0 Then
{
TL1 = TL_new(LD[1],LT[1],LL[1],HD,HT,HH);
TL_Delete(TL3);
TL_Delete(TL4);
TL_Delete(TL5);
TL_Delete(TL6);
#TL3 = TL_new(HD[1],HT[1],HH[1],sdate,stime,HH[1]);
#TL4 = TL_new(HD[1],HT[1],(HH[1]+LL)/2,sdate,stime,(HH[1]+LL)/2);
#TL5 = TL_new(HD[1],HT[1],LL,sdate,stime,LL);
#TL6 = TL_new(HD[1],HT[1],HH[1]+(HH[1]-LL[1])/2,sdate,stime,HH[1]+(HH[1]-LL)/2);
//추세선 오른쪽 연장설정
TL_SetExtRight(TL3,true);
TL_SetExtRight(TL4,true);
TL_SetExtRight(TL5,true);
TL_SetExtRight(TL6,true);
if 텍스트출력 == 1 then
{
Tx11 = Text_New(HD1,HT1,HH1,NumToStr((HH1-LL1)/PriceScale,0)+NewLine+NumToStr(HH1,2));
Text_SetStyle(tx11,2,1);
Text_Delete(tx1);
Tx1 = Text_New(HD,HT,HH,NumToStr((HH-LL[1])/PriceScale,0)+NewLine+NumToStr(HH,2));
Text_SetStyle(tx1,2,1);
}
}
#############################################
#############################################
################################################
#########################################
//52행
// TL11 = TL_New(HD1,HT1,HH1,HD,HT,HH);
TL11 = TL_New(HD1,HT1,HH1+PriceScale,HD,HT,HH+PriceScale);
}
if CrossDown(c,var1) Then
{
T = -1;
LL = L;
LD = sdate;
LT = stime;
LL1 = LL[1];
LD1 = LD[1];
LT1 = LT[1];
if HH > 0 Then
{
TL2 = TL_new(HD[1],HT[1],HH[1],LD,LT,LL);
TL_Delete(TL3);
TL_Delete(TL4);
TL_Delete(TL5);
TL_Delete(TL6);
#TL3 = TL_new(LD[1],LT[1],HH,sdate,stime,HH);
#TL4 = TL_new(LD[1],LT[1],(HH+LL[1])/2,sdate,stime,(HH+LL[1])/2);
#TL5 = TL_new(LD[1],LT[1],LL[1],sdate,stime,LL[1]);
#TL6 = TL_new(LD[1],LT[1],LL[1]-(HH-LL[1])/2,sdate,stime,LL[1]-(HH-LL[1])/2);
//추세선 오른쪽 연장설정
TL_SetExtRight(TL3,true);
TL_SetExtRight(TL4,true);
TL_SetExtRight(TL5,true);
TL_SetExtRight(TL6,true);
if 텍스트출력 == 1 then
{
Tx22 = Text_New(LD1,LT1,LL1,NumToStr((HH1-LL1)/PriceScale,0)+NewLine+NumToStr(LL1,2));
Text_SetStyle(tx22,2,0);
Text_Delete(tx2);
Tx2 = Text_New(LD,LT,LL,NumToStr((HH[1]-LL)/PriceScale,0)+NewLine+NumToStr(LL,2));
Text_SetStyle(tx2,2,0);
}
}
#############################################
#############################################
############################################
############################################
//98행
// TL22 = TL_New(LD1,LT1,LL1,LD,LT,LL);
TL22 = TL_New(LD1,LT1,LL1-PriceScale,LD,LT,LL-PriceScale);
}
if T == 1 then
{
if H > HH Then
{
HH = H;
HD = sdate;
HT = stime;
TL_SetEnd(TL1,HD,HT,HH);
TL_SetEnd(TL11,HD,HT,HH);
if 텍스트출력 == 1 then
{
Text_Delete(tx1);
Tx1 = Text_New(HD,HT,HH,NumToStr((HH-LL[1])/PriceScale,0)+NewLine+NumToStr(HH,2));
Text_SetStyle(tx1,2,1);
}
}
}
if T == -1 then
{
if L < LL Then
{
LL = L;
LD = sdate;
LT = stime;
TL_SetEnd(TL2,LD,LT,LL);
TL_SetEnd(TL22,LD,LT,LL);
if 텍스트출력 == 1 then
{
Text_Delete(tx2);
Tx2 = Text_New(LD,LT,LL,NumToStr((HH[1]-LL)/PriceScale,0)+NewLine+NumToStr(LL,2));
Text_SetStyle(tx2,2,0);
}
}
}
#추세선 두께, 색상
TL_SetSize(TL1,추세선두께);
TL_SetSize(TL11,추세선두께);
TL_SetSize(TL2,추세선두께);
TL_SetSize(TL22,추세선두께);
TL_SetColor(TL1,추세선색1);
TL_SetColor(TL11,추세선색1);
TL_SetColor(TL2,추세선색2);
TL_SetColor(TL22,추세선색2);
#연장선 두께, 색상
TL_SetSize(TL3,연장선두께);
TL_SetSize(TL4,연장선두께);
TL_SetSize(TL5,연장선두께);
TL_SetSize(TL6,연장선두께);
TL_SetColor(TL3,연장선색);
TL_SetColor(TL4,연장선색);
TL_SetColor(TL5,연장선색);
TL_SetColor(TL6,연장선색);
- 1. 120465_q삼각.PNG (0.04 MB)
- 2. 이동2.png (0.04 MB)
답변 1
예스스탁 예스스탁 답변
2018-06-20 13:02:21
안녕하세요
예스스탁입니다.
고점에는 +x틱,저점은 -x틱에 출력하게 수정했습니다.
좌우이동은 값산정이 되지 않습니다.
input : af(0.02), maxAF(0.2),추세선두께(1),추세선색1(YELLOW),추세선색2(CYAN),연장선두께(2),연장선색(blue),x(1);
input : 텍스트출력(0);
var : T(0),HH(0),LL(0),HD(0),HT(0),LD(0),LT(0);
var : HH1(0),LL1(0),HD1(0),HT1(0),LD1(0),LT1(0);
var : TL1(0),TL2(0),cnt(0),count(0);
var : TL3(0),TL4(0),TL5(0),TL6(0),tx1(0),tx2(0),tx11(0),tx22(0);
Var : TL11(0),TL22(0);
var1 = CSar(af,maxAF);
if crossup(c,var1) Then
{
T = 1;
HH = H;
HD = sdate;
HT = stime;
HH1 = HH[1];
HD1 = HD[1];
HT1 = HT[1];
if LL > 0 Then
{
TL1 = TL_new(LD[1],LT[1],LL[1]-PriceScale*x,HD,HT,HH+PriceScale*x);
TL_Delete(TL3);
TL_Delete(TL4);
TL_Delete(TL5);
TL_Delete(TL6);
#TL3 = TL_new(HD[1],HT[1],HH[1],sdate,stime,HH[1]);
#TL4 = TL_new(HD[1],HT[1],(HH[1]+LL)/2,sdate,stime,(HH[1]+LL)/2);
#TL5 = TL_new(HD[1],HT[1],LL,sdate,stime,LL);
#TL6 = TL_new(HD[1],HT[1],HH[1]+(HH[1]-LL[1])/2,sdate,stime,HH[1]+(HH[1]-LL)/2);
//추세선 오른쪽 연장설정
TL_SetExtRight(TL3,true);
TL_SetExtRight(TL4,true);
TL_SetExtRight(TL5,true);
TL_SetExtRight(TL6,true);
if 텍스트출력 == 1 then
{
Tx11 = Text_New(HD1,HT1,HH1,NumToStr((HH1-LL1)/PriceScale,0)+NewLine+NumToStr(HH1,2));
Text_SetStyle(tx11,2,1);
Text_Delete(tx1);
Tx1 = Text_New(HD,HT,HH,NumToStr((HH-LL[1])/PriceScale,0)+NewLine+NumToStr(HH,2));
Text_SetStyle(tx1,2,1);
}
}
#############################################
#############################################
################################################
#########################################
//52행
// TL11 = TL_New(HD1,HT1,HH1,HD,HT,HH);
TL11 = TL_New(HD1,HT1,HH1+PriceScale*x,HD,HT,HH+PriceScale*x);
}
if CrossDown(c,var1) Then
{
T = -1;
LL = L;
LD = sdate;
LT = stime;
LL1 = LL[1];
LD1 = LD[1];
LT1 = LT[1];
if HH > 0 Then
{
TL2 = TL_new(HD[1],HT[1],HH[1]+PriceScale*x,LD,LT,LL-PriceScale*x);
TL_Delete(TL3);
TL_Delete(TL4);
TL_Delete(TL5);
TL_Delete(TL6);
#TL3 = TL_new(LD[1],LT[1],HH,sdate,stime,HH);
#TL4 = TL_new(LD[1],LT[1],(HH+LL[1])/2,sdate,stime,(HH+LL[1])/2);
#TL5 = TL_new(LD[1],LT[1],LL[1],sdate,stime,LL[1]);
#TL6 = TL_new(LD[1],LT[1],LL[1]-(HH-LL[1])/2,sdate,stime,LL[1]-(HH-LL[1])/2);
//추세선 오른쪽 연장설정
TL_SetExtRight(TL3,true);
TL_SetExtRight(TL4,true);
TL_SetExtRight(TL5,true);
TL_SetExtRight(TL6,true);
if 텍스트출력 == 1 then
{
Tx22 = Text_New(LD1,LT1,LL1,NumToStr((HH1-LL1)/PriceScale,0)+NewLine+NumToStr(LL1,2));
Text_SetStyle(tx22,2,0);
Text_Delete(tx2);
Tx2 = Text_New(LD,LT,LL,NumToStr((HH[1]-LL)/PriceScale,0)+NewLine+NumToStr(LL,2));
Text_SetStyle(tx2,2,0);
}
}
#############################################
#############################################
############################################
############################################
//98행
// TL22 = TL_New(LD1,LT1,LL1,LD,LT,LL);
TL22 = TL_New(LD1,LT1,LL1-PriceScale*x,LD,LT,LL-PriceScale*x);
}
if T == 1 then
{
if H > HH Then
{
HH = H;
HD = sdate;
HT = stime;
TL_SetEnd(TL1,HD,HT,HH+PriceScale*x);
TL_SetEnd(TL11,HD,HT,HH+PriceScale*x);
if 텍스트출력 == 1 then
{
Text_Delete(tx1);
Tx1 = Text_New(HD,HT,HH,NumToStr((HH-LL[1])/PriceScale,0)+NewLine+NumToStr(HH,2));
Text_SetStyle(tx1,2,1);
}
}
}
if T == -1 then
{
if L < LL Then
{
LL = L;
LD = sdate;
LT = stime;
TL_SetEnd(TL2,LD,LT,LL-PriceScale*x);
TL_SetEnd(TL22,LD,LT,LL-PriceScale*x);
if 텍스트출력 == 1 then
{
Text_Delete(tx2);
Tx2 = Text_New(LD,LT,LL,NumToStr((HH[1]-LL)/PriceScale,0)+NewLine+NumToStr(LL,2));
Text_SetStyle(tx2,2,0);
}
}
}
#추세선 두께, 색상
TL_SetSize(TL1,추세선두께);
TL_SetSize(TL11,추세선두께);
TL_SetSize(TL2,추세선두께);
TL_SetSize(TL22,추세선두께);
TL_SetColor(TL1,추세선색1);
TL_SetColor(TL11,추세선색1);
TL_SetColor(TL2,추세선색2);
TL_SetColor(TL22,추세선색2);
#연장선 두께, 색상
TL_SetSize(TL3,연장선두께);
TL_SetSize(TL4,연장선두께);
TL_SetSize(TL5,연장선두께);
TL_SetSize(TL6,연장선두께);
TL_SetColor(TL3,연장선색);
TL_SetColor(TL4,연장선색);
TL_SetColor(TL5,연장선색);
TL_SetColor(TL6,연장선색);
즐거운 하루되세요
