박스 위치
2023-08-28 13:46:29
1649
글번호 171884
첨부 이미지
그림1
input : Period(230);
Var:j(0),T(0),tl(0),TL1(0),tx(0) ,box(0),LL(0),HH(0),L1(0);
Var: date11(0),date12(0),time11(0),time12(0),
date21(0),date22(0),time21(0),time22(0),
date31(0),date32(0),time31(0),time32(0);
Array: HiVal[20](0),LoVal[20](0),HiBar[20](0),LoBar[20](0);
Plot1(0);
For j = 0 To 19
{
HiBar[j] = HiBar[j] + 1;
LoBar[j] = LoBar[j] + 1;
}
if crossup(c,highest(H,Period)[1]) Then
T = 1;
if CrossDown(c,Lowest(L,Period)[1]) Then
T = -1;
If T == -1 Then
{
If T[1] != -1 Then
{
For j = 18 DownTo 0
{
LoVal[j+1] = LoVal[j];
LoBar[j+1] = LoBar[j];
}
LoVal[0] = L;
LoBar[0] = 0;
date11 = date[HiBar[0]];
time11 = stime[HiBar[0]];
Value11 = HiVal[0];
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
TL_Delete(TL);
TL = TL_New(sdate,stime,Value12,NextBarSdate,NextBarStime,NextBarOpen);
TL1 = TL_New(date11,time11,Value11,date12,time12,Value12);
TL_SetColor(TL1,Blue);
TL_SetSize(TL1,2);
date21 = date[HiBar[0]];
time21 = stime[HiBar[0]];
date22 = date[0];
time22 = stime[0];
box = Box_New(date11,time11,LL,date12,time12,value12);
Text_SetSize(tx,25);
Text_SetColor(Tx,Red);
Text_SetStyle(tx,1,1);
Text_SetBold(tx,1);
if abs(value12[1]-value11[1]) < 0.7 Then
Text_Delete(tx);
tx = Text_New(sDate,stime,value12,NumToStr(value11-value12,2));
Text_SetColor(Tx,Blue);
Text_SetStyle(tx,1,0);
Text_SetSize(tx,25);
Text_SetBold(tx,1);
}
If LoVal[0] >= L Then
{
LoVal[0] = L;
LoBar[0] = 0;
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
TL_SetEnd(TL1, date12,time12,Value12);
date22 = date[0];
time22 = stime[0];
Box_SetEnd(BOX,date12,time12,Value12);
Text_SetString(tx,NumToStr(value11-value12,2));
Text_SetLocation(tx,sDate,sTime,value12);
}
if value12 > value11-0.7 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-0.7 and value12 > value11-0.95 Then
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,90);
}
else if value12 <= value11-0.95 and value12 > value11-1.3 Then
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,80);
}
else if value12 <= value11-1.3 and value12 > value11-1.6 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-1.6 and value12 > value11-2 Then
{
Box_SetColor(box,Blue);
Box_SetFill(box,true,25);
}
else
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,35);
}
}
If T == 1 Then
{
If T[1] != 1 Then
{
For j = 18 DownTo 0
{
HiVal[j+1] = HiVal[j];
HiBar[j+1] = HiBar[j];
}
HiVal[0] = H;
HiBar[0] = 0;
date11 = date[LoBar[0]];
time11 = stime[LoBar[0]];
Value11 = LoVal[0];
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
TL_Delete(TL);
TL = TL_New(sdate,stime,Value12,NextBarSdate,NextBarStime,NextBarOpen);
TL1 = TL_New(date11,time11,Value11,date12,time12,Value12);
TL_SetColor(TL1,Red);
TL_SetSize(TL1,2);
date31 = date[LoBar[0]];
time31 = stime[LoBar[0]];
date32 = date[0];
time32 = stime[0];
box = Box_New(date11,time11,Value11,date12,time12,Value12);
Text_SetSize(tx,25);
Text_SetColor(Tx,Blue);
Text_SetStyle(tx,1,0);
Text_SetBold(tx,1);
if abs(value12[1]-value11[1]) < 0.7 Then
Text_Delete(tx);
tx = Text_New(sDate,stime,value12,NumToStr(value12-value11,2));
Text_SetColor(Tx,Red);
Text_SetStyle(tx,1,1);
Text_SetSize(tx,25);
Text_SetBold(tx,1);
}
If HiVal[0] <=H Then
{
HiVal[0] = H;
HiBar[0] = 0;
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
TL_SetEnd(TL1, date12,time12,Value12);
date32 = date[0];
time32 = stime[0];
Box_SetEnd(box,date12,time12,Value12);
Text_SetString(tx,NumToStr(value12-value11,2));
Text_SetLocation(tx,sDate,sTime,value12);
}
if Value12 > value11+1.1 Then
{
Box_SetColor(box,Pink);
Box_SetFill(box,true,90);
}
else if value12 >= value11+0.8 and value12 <= value11+1.1 Then
{
Box_SetColor(box,Magenta);
Box_SetFill(box,true,40);
}
Else
{
Box_SetColor(box,Orange);
Box_SetFill(box,true,60);
}
}

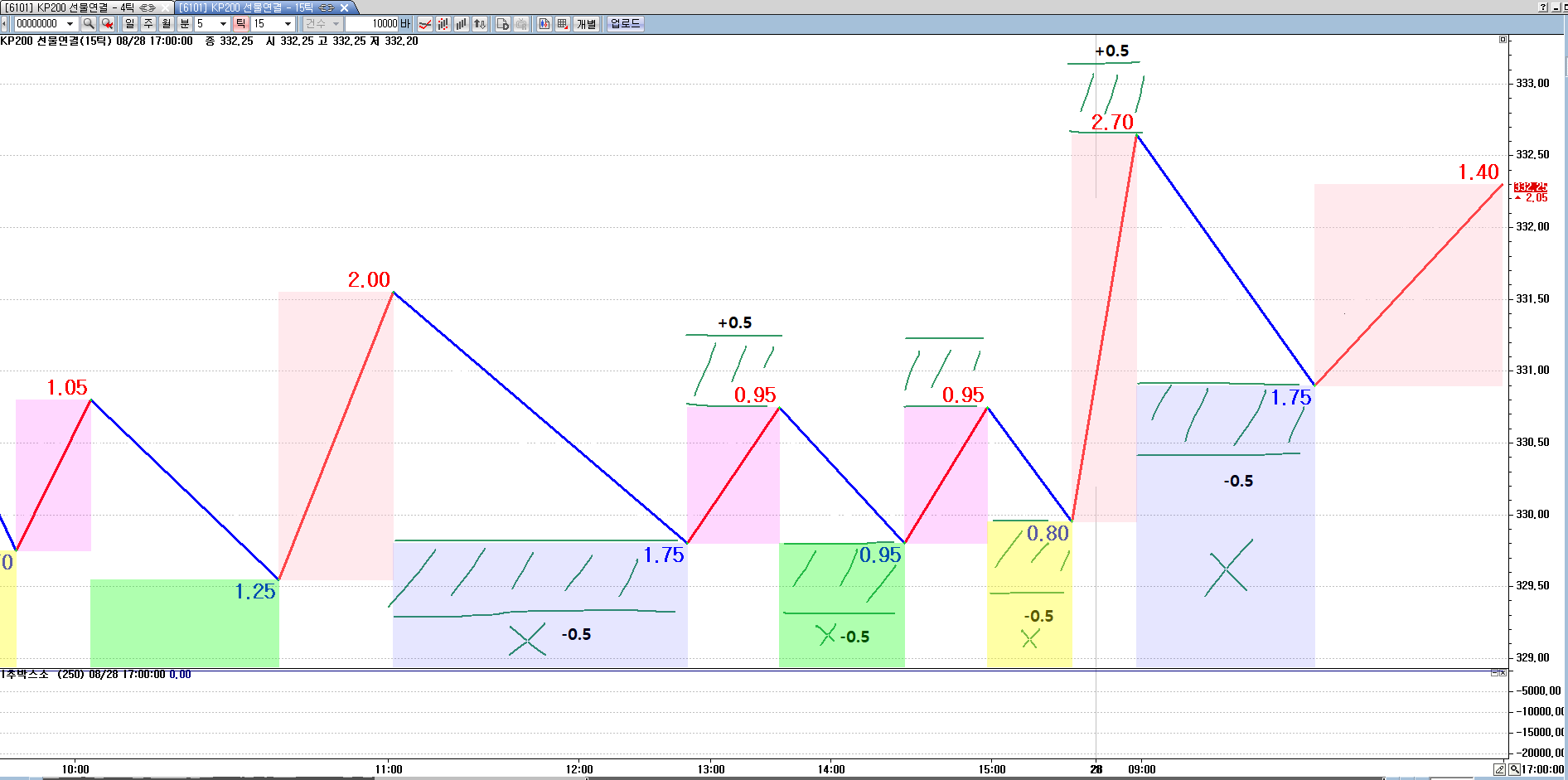

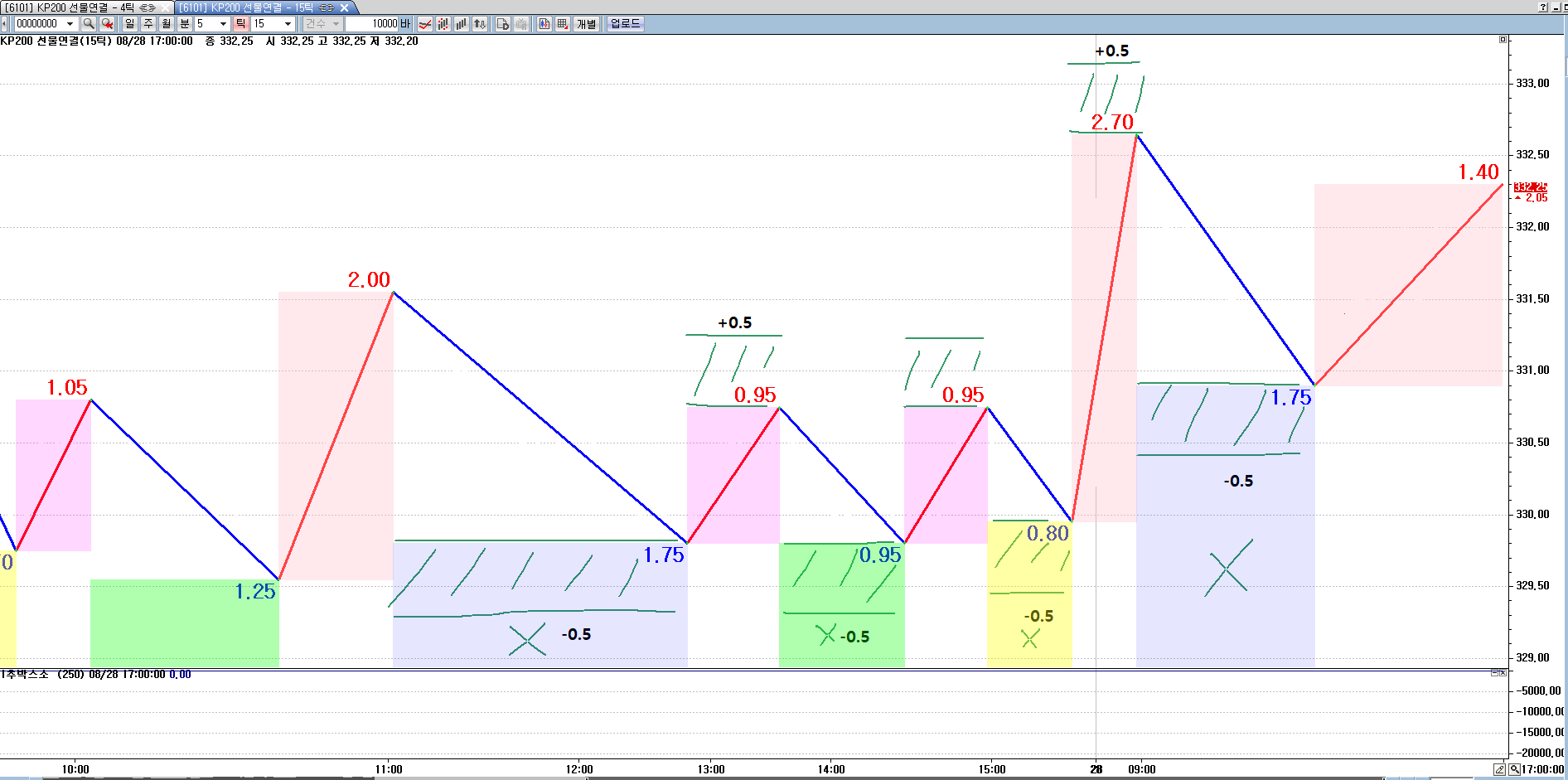

하락 박스 상단은 그림같이 추세선 하단에 맞추고(LL), 박스 하단을 하락추세선 하단 -0.5p 아래에서 끊을 수 있을까요? 빗금친 부분만 박스. 크기별 색상 그대로 유지.
상승 박스는 반대.
안되면 상승 박스를 현재 하락 박스같이, 상승 박스 하단은 상승추세선 상단, 상승 박스 상단은 차트 상단으로 올려주세요. 하락은 내렸는데 상승은 안올라가네요. 감사합니다.
- 1. 147.png (0.06 MB)
답변 1
예스스탁 예스스탁 답변
2023-08-28 15:11:18
안녕하세요
예스스탁입니다.
input : Period(230);
Var:j(0),T(0),tl(0),TL1(0),tx(0) ,box(0),LL(0),HH(0),L1(0);
Var: date11(0),date12(0),time11(0),time12(0),
date21(0),date22(0),time21(0),time22(0),
date31(0),date32(0),time31(0),time32(0);
Array: HiVal[20](0),LoVal[20](0),HiBar[20](0),LoBar[20](0);
Plot1(0);
For j = 0 To 19
{
HiBar[j] = HiBar[j] + 1;
LoBar[j] = LoBar[j] + 1;
}
if crossup(c,highest(H,Period)[1]) Then
T = 1;
if CrossDown(c,Lowest(L,Period)[1]) Then
T = -1;
If T == -1 Then
{
If T[1] != -1 Then
{
For j = 18 DownTo 0
{
LoVal[j+1] = LoVal[j];
LoBar[j+1] = LoBar[j];
}
LoVal[0] = L;
LoBar[0] = 0;
date11 = date[HiBar[0]];
time11 = stime[HiBar[0]];
Value11 = HiVal[0];
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
TL_Delete(TL);
TL = TL_New(sdate,stime,Value12,NextBarSdate,NextBarStime,NextBarOpen);
TL1 = TL_New(date11,time11,Value11,date12,time12,Value12);
TL_SetColor(TL1,Blue);
TL_SetSize(TL1,2);
date21 = date[HiBar[0]];
time21 = stime[HiBar[0]];
date22 = date[0];
time22 = stime[0];
box = Box_New(date11,time11,Value12,date12,time12,value12-0.5);
Text_SetSize(tx,25);
Text_SetColor(Tx,Red);
Text_SetStyle(tx,1,1);
Text_SetBold(tx,1);
if abs(value12[1]-value11[1]) < 0.7 Then
Text_Delete(tx);
tx = Text_New(sDate,stime,value12,NumToStr(value11-value12,2));
Text_SetColor(Tx,Blue);
Text_SetStyle(tx,1,0);
Text_SetSize(tx,25);
Text_SetBold(tx,1);
}
If LoVal[0] >= L Then
{
LoVal[0] = L;
LoBar[0] = 0;
date12 = date[LoBar[0]];
time12 = stime[LoBar[0]];
Value12 = LoVal[0];
TL_SetEnd(TL1, date12,time12,Value12);
date22 = date[0];
time22 = stime[0];
Box_SetBegin(BOX,date11,time11,Value12);
Box_SetEnd(BOX,date12,time12,Value12-0.5);
Text_SetString(tx,NumToStr(value11-value12,2));
Text_SetLocation(tx,sDate,sTime,value12);
}
if value12 > value11-0.7 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-0.7 and value12 > value11-0.95 Then
{
Box_SetColor(box,Yellow);
Box_SetFill(box,true,90);
}
else if value12 <= value11-0.95 and value12 > value11-1.3 Then
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,80);
}
else if value12 <= value11-1.3 and value12 > value11-1.6 Then
{
Box_SetColor(box,Cyan);
Box_SetFill(box,true,50);
}
else if value12 <= value11-1.6 and value12 > value11-2 Then
{
Box_SetColor(box,Blue);
Box_SetFill(box,true,25);
}
else
{
Box_SetColor(box,Lime);
Box_SetFill(box,true,35);
}
}
If T == 1 Then
{
If T[1] != 1 Then
{
For j = 18 DownTo 0
{
HiVal[j+1] = HiVal[j];
HiBar[j+1] = HiBar[j];
}
HiVal[0] = H;
HiBar[0] = 0;
date11 = date[LoBar[0]];
time11 = stime[LoBar[0]];
Value11 = LoVal[0];
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
TL_Delete(TL);
TL = TL_New(sdate,stime,Value12,NextBarSdate,NextBarStime,NextBarOpen);
TL1 = TL_New(date11,time11,Value11,date12,time12,Value12);
TL_SetColor(TL1,Red);
TL_SetSize(TL1,2);
date31 = date[LoBar[0]];
time31 = stime[LoBar[0]];
date32 = date[0];
time32 = stime[0];
box = Box_New(date11,time11,Value11,date12,time12,Value12+0.5);
Text_SetSize(tx,25);
Text_SetColor(Tx,Blue);
Text_SetStyle(tx,1,0);
Text_SetBold(tx,1);
if abs(value12[1]-value11[1]) < 0.7 Then
Text_Delete(tx);
tx = Text_New(sDate,stime,value12,NumToStr(value12-value11,2));
Text_SetColor(Tx,Red);
Text_SetStyle(tx,1,1);
Text_SetSize(tx,25);
Text_SetBold(tx,1);
}
If HiVal[0] <=H Then
{
HiVal[0] = H;
HiBar[0] = 0;
date12 = date[HiBar[0]];
time12 = stime[HiBar[0]];
Value12 = HiVal[0];
TL_SetEnd(TL1, date12,time12,Value12);
date32 = date[0];
time32 = stime[0];
Box_SetBegin(box,date11,time11,Value12);
Box_SetEnd(box,date12,time12,Value12+0.5);
Text_SetString(tx,NumToStr(value12-value11,2));
Text_SetLocation(tx,sDate,sTime,value12);
}
if Value12 > value11+1.1 Then
{
Box_SetColor(box,Pink);
Box_SetFill(box,true,90);
}
else if value12 >= value11+0.8 and value12 <= value11+1.1 Then
{
Box_SetColor(box,Magenta);
Box_SetFill(box,true,40);
}
Else
{
Box_SetColor(box,Orange);
Box_SetFill(box,true,60);
}
}
즐거운 하루되세요
